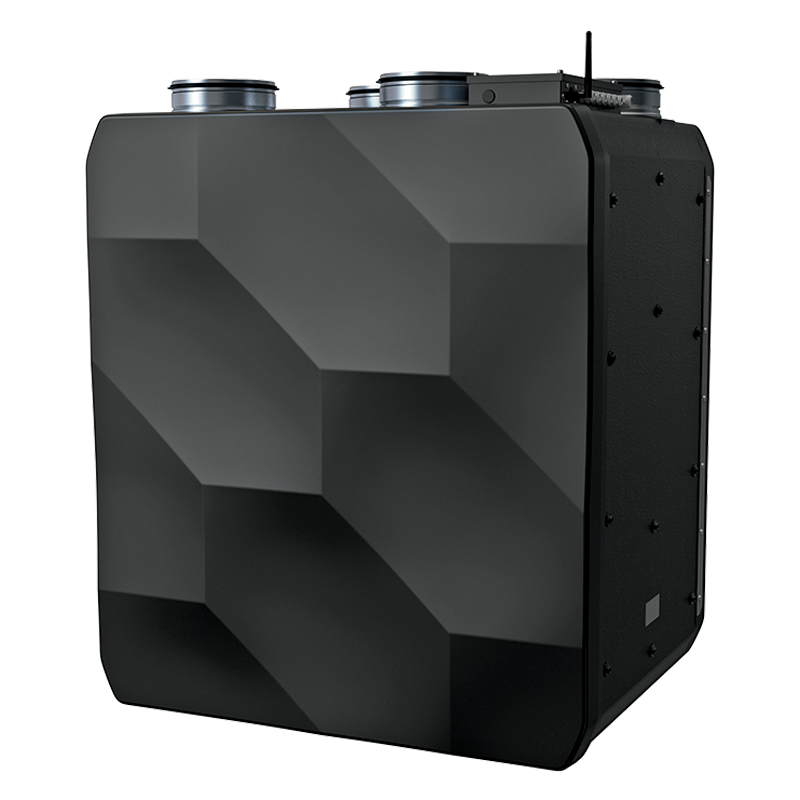

Blauberg Reneo SE 381 R S21 CF

Blauberg Reneo SE 381 R S21 CF - Heat and energy recovery air handling units
New
Series: Reneo S
Heat and energy recovery air handling units
  • Power of electrical preheater: 1050 W
  • Heat exchanger type: Counter flow
  • Heat exchanger material: Polystyrene
  • Sound-insulated casing
  • Bypass: Auto
  • Preheater: Built-in
  • Reheater: Optional
  • BMS protocol: ModBus
  • Control: Smartphone
  • Casing material: EPP
  • CO2 sensor: Optional
  • PM2.5 sensor: Optional
Unit of measurement Reneo SE 381 R S21 CF
Phases - 1
Maximum supply voltage V 230
Minimum supply voltage V 230
Power supply frequency Hz 50/60
Power of electrical preheater W 1050
Maximum airflow m³/h 390
Heat recovery efficiency, max % 93
Heat exchanger type - Counter flow
Heat exchanger material - Polystyrene
Weight kg 26
Transported air temperature (max) °С 40
Transported air temperature (min) °С -25
Ambient air temperature min °С 1
Ambient air temperature max °С 40
Ingress protection rating - IP22
Ingress protection rating of the drive - IP44
Ambient air humidity max % 60
Datasheet
Reneo S - data sheet
2.74 Mb
Manual
Reneo S 210/270, 240 CF - user's manual (B282EN-02)
6.81 Mb
Manual
Reneo S 350/380/400/550 - user's manual (B279EN-03)
7.86 Mb
Manual
S21 - user's manual (B55-8EN-05)
626 Kb
Manual
S14 - user's manual (B55-7EN-02)
1.31 Mb
Manual
S14 software "Zero Service Software"
18.32 Mb
BIM/CAD-models
Reneo S 210/270, 240 CF - BIM model
3.01 Mb
BIM/CAD-models
Reneo S 350(-E) 380(-E) CF 550(-E) - BIM model
2.13 Mb
Reneo SE 381 R S21 CF - image 1
709 Kb

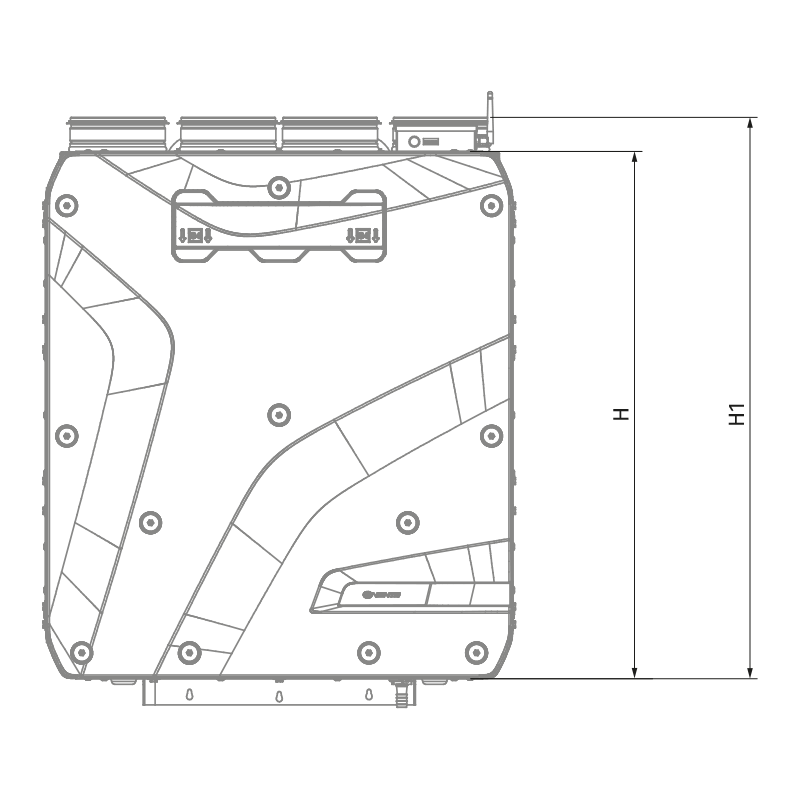

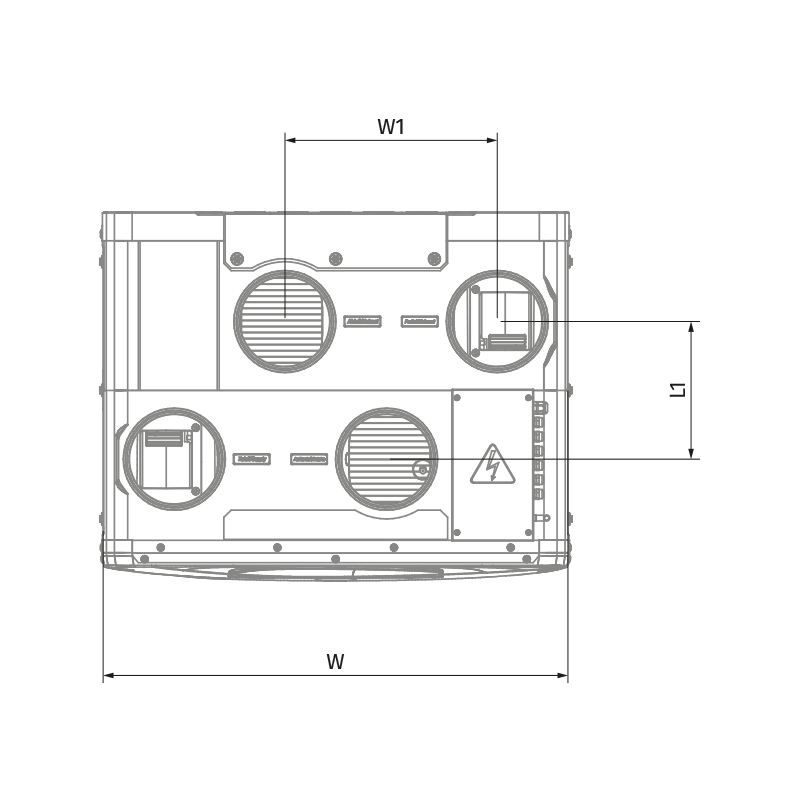

Ø D H H1 L L1 W W1
160 880 939 616 230 770 355
Condensation drainage
Name Photo Description

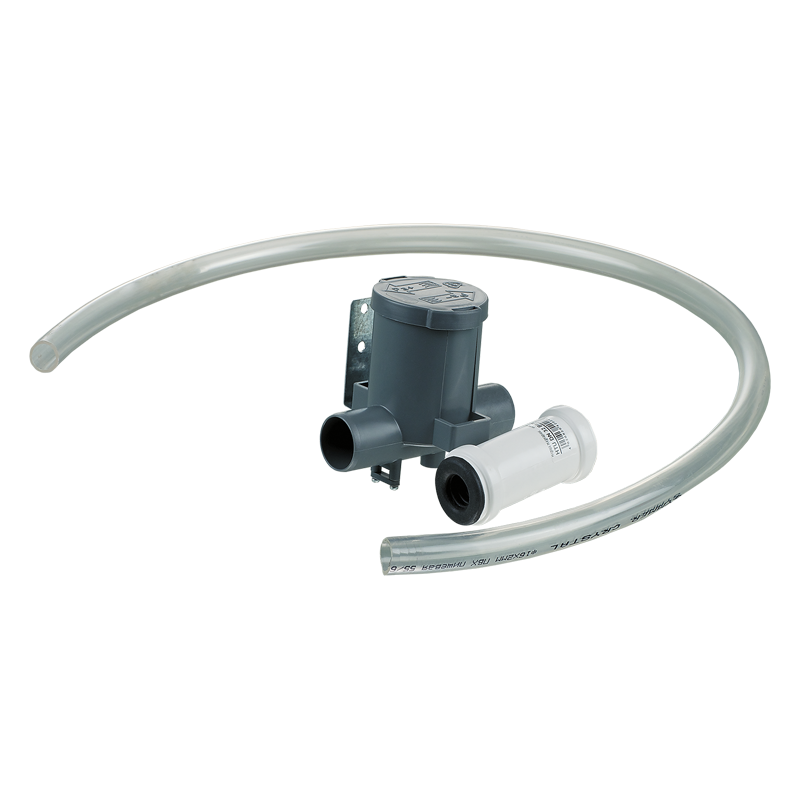

Blauberg SFK 20x32 SFK 20x32 Hydraulic syphon for condensate drainage
Control Panels
Name Photo Description

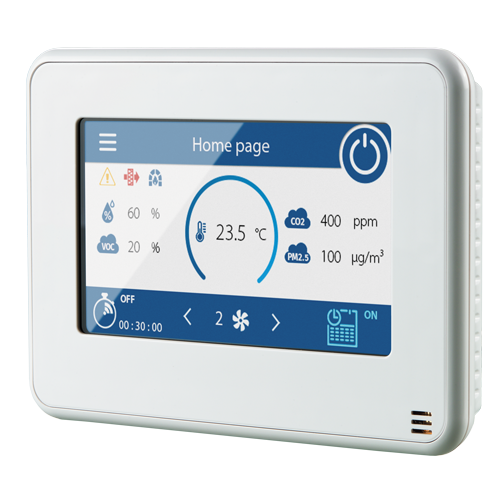

Blauberg S25 S25 LCD control panel

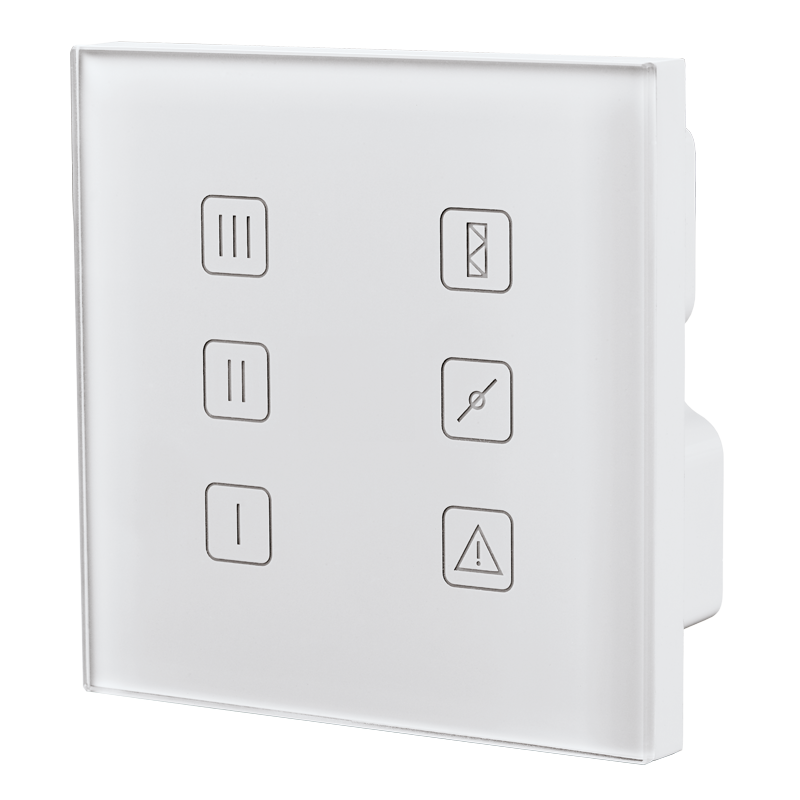

Blauberg S22 S22 Control panels

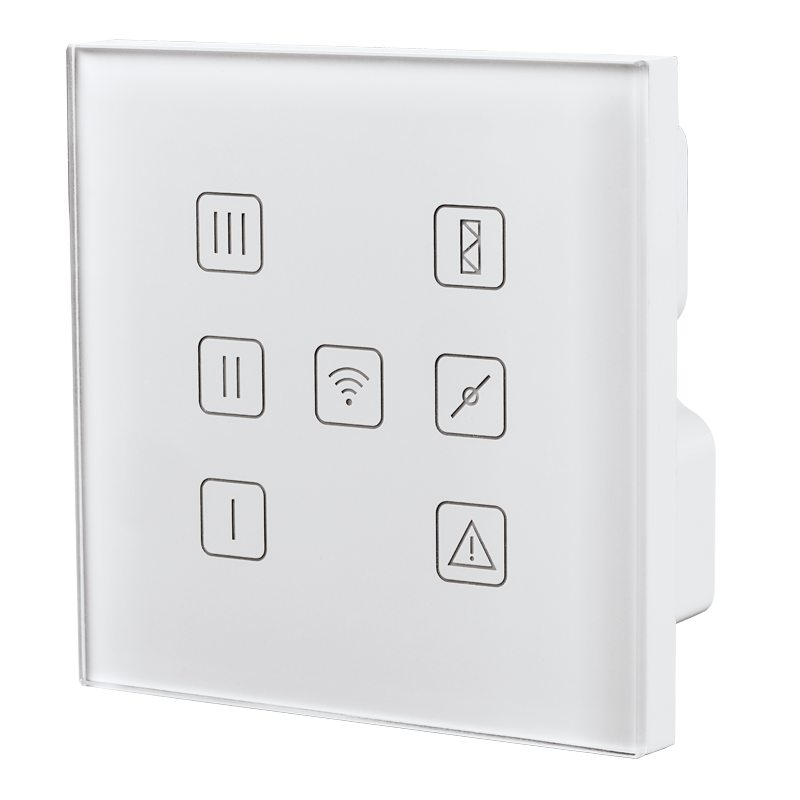

Blauberg S22 Wi-Fi S22 Wi-Fi Control panels
CO2 sensors
Name Photo Description

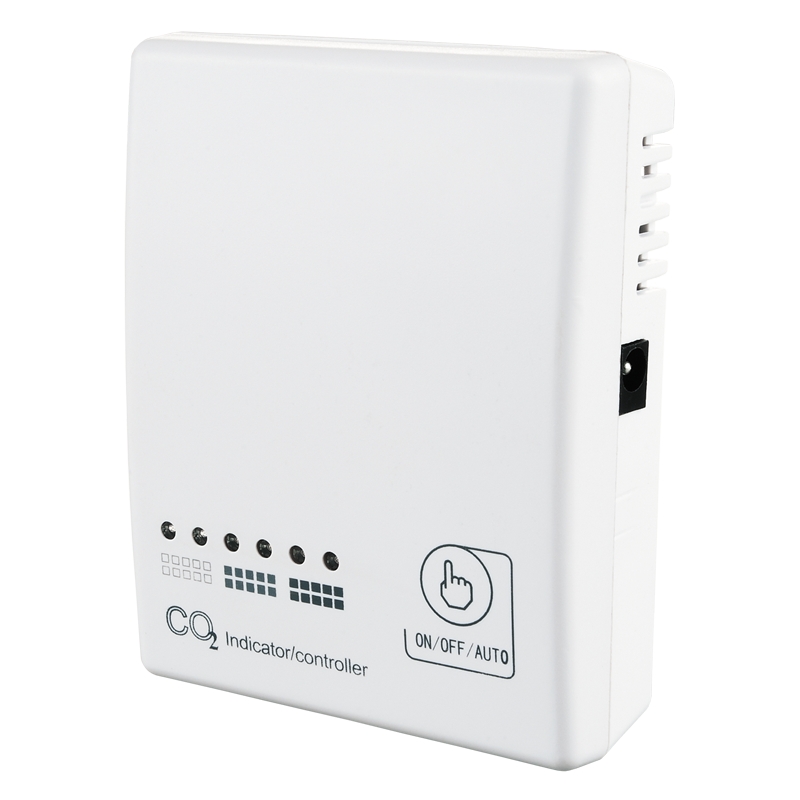

Blauberg CD-1 CD-1 CO2 sensors

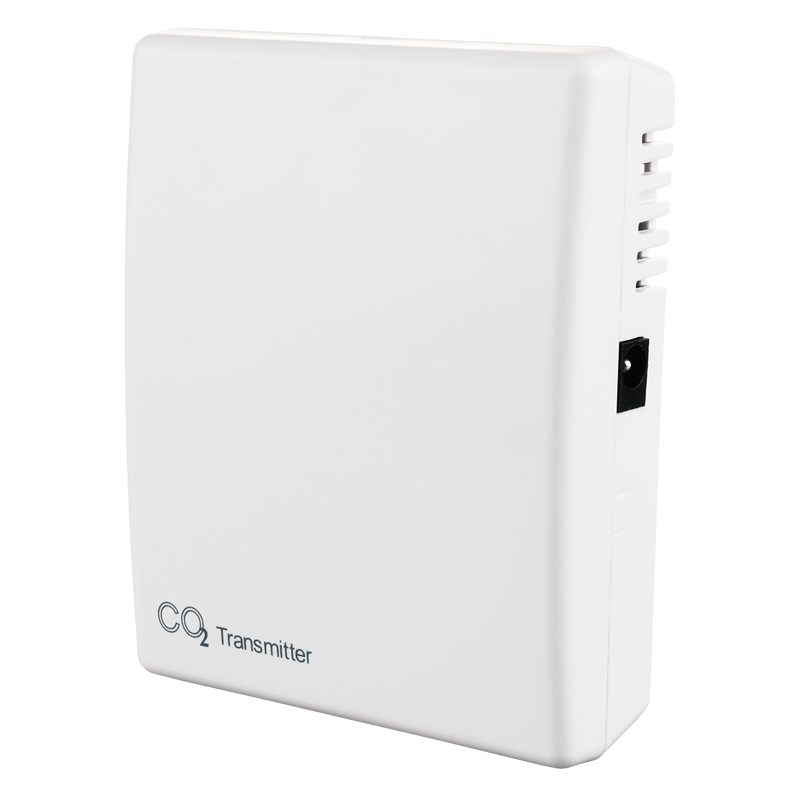

Blauberg CD-2 CD-2 CO2 sensors
Humidity sensors
Name Photo Description

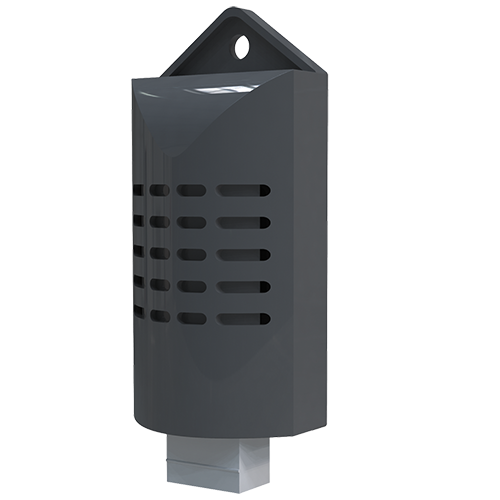

Blauberg FS2 FS2 Humidity sensor
Other accessories
Name Photo Description

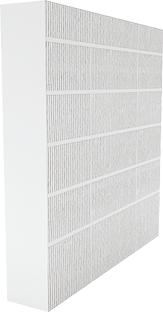

Blauberg FP 496x150x60 ePM1 60 % (F7) FP 496x150x60 ePM1 60 % (F7) F7 panel filter

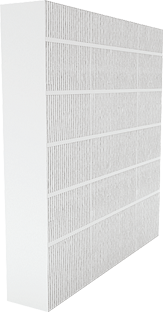

Blauberg FP 496x150x60 Coarse 90 % (G4) FP 496x150x60 Coarse 90 % (G4) G4 panel filter

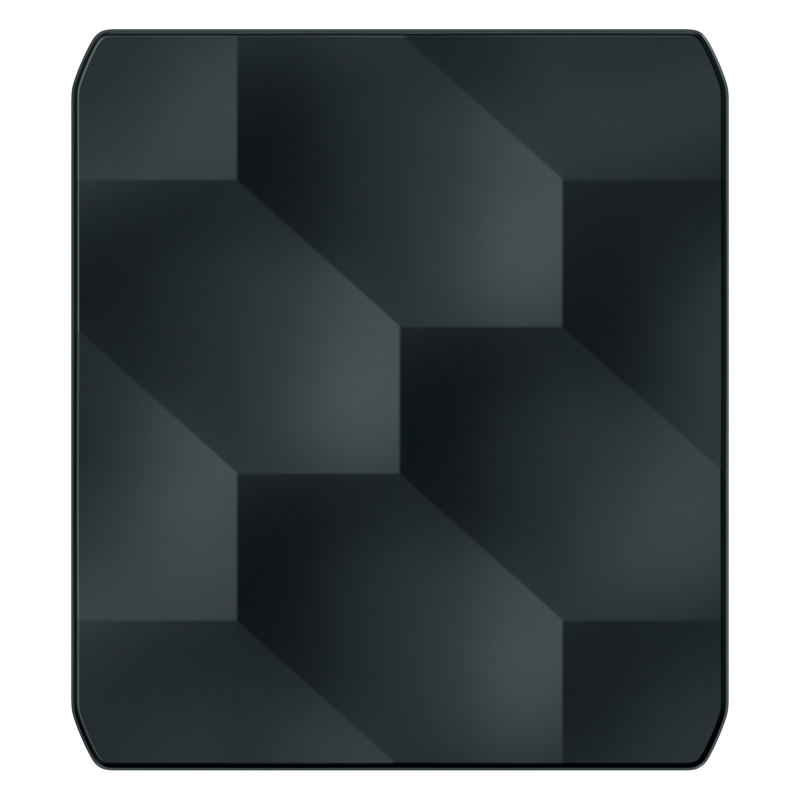

Blauberg EP-Reneo S 351 EP-Reneo S 351 Decorative panel
