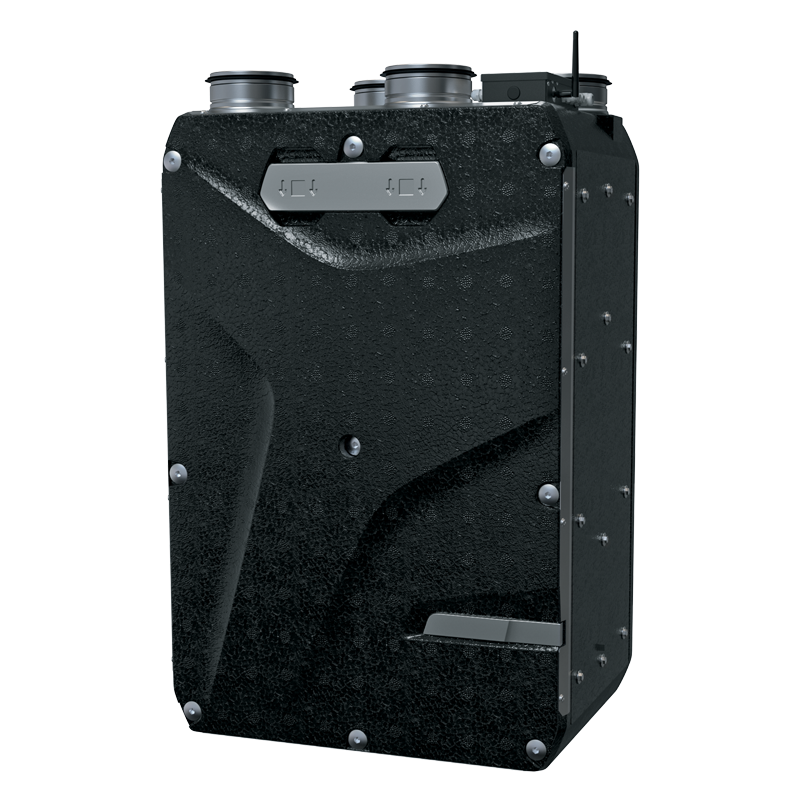

Name: Blauberg Reneo S 240 R S21 CF
Brand: VENTS
Availability: InStock

Specific energy consumption (SEC) (kWh/(m²/a))

Cold

Average

Warm

-81.3

A+

-42.4

A+

-17.5

E

Type of drive installed

Variable speed

Thermal efficiency of heat recovery (%)

87

Electric power input (W)

175

Reference pressure difference (Pa)

50

Control typology

Local demand control

Maximum external leakage rates (%)

2.7

The annual electricity consumption (AEC) (kWh/a)

Cold

Average

Warm

721

184

139

	Unit of measurement	Reneo S 240 R S21 CF
Phases	-	1
Maximum supply voltage	V	230
Minimum supply voltage	V	230
Power supply frequency	Hz	50/60
Maximum airflow	m³/h	235
Heat recovery efficiency, max	%	89
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Polystyrene
Weight	kg	20
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-25
Ambient air temperature max	°С	40
Ambient air temperature min	°С	1
Ingress protection rating	-	IP22
Ingress protection rating of the drive	-	IP44
Ambient air humidity max	%	60

Name	Photo	Description
Blauberg CD-1		CO2 sensors
Blauberg CD-2		CO2 sensors

Name	Photo	Description
Blauberg FP 356x100x48 ePM1 60% F7		F7 panel filter
Blauberg FP 356x100x48 Coarse 90% G4		G4 panel filter

Trademark	Blauberg
Model	Reneo S 240 R S21 CF
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-81.3	A+	-42.4	A+	-17.5	E
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	87
Maximum flow rate (m³/h)	235
Electric power input (W)	175
Reference flow rate (m³/s)	0.046
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.262
Control typology	Local demand control
Maximum internal leakage rates (%)	2.7
Maximum external leakage rates (%)	2.7
Sound power level (dB(A))	49
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	721		184		139
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	9060		4631		2094
